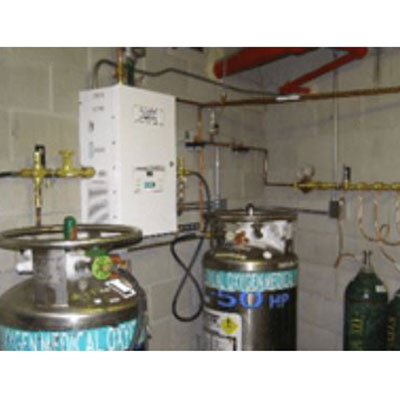

Manifolds Click for Larger View

Call us TODAY at 727-835-0662 or
Toll Free at 800-761-4298

Request A Quote!

Powerex® Medical Manifolds


Powerex Genesys® fully-automatic manifold systems incorporate innovative features that improve safety, reduce manifold system costs, enhance serviceability, and provide industry-leading reliability.


PX-CCU, PX-NPCU, PX-LLU, and PX-PLU models are OSHPD Seismic Certified, OSP-0380-10.

The following products can not be added to the quote cart, To order these products please call 727-835-0662 to speak with an mdi representative.

Manifolds Model: PX-CCU, PX-NPCU, PX-TMCU, PX-LLU, PX-TMLU, PX-PLU, PX-LU35, PX-RWP, PX-TSD, PX-TMD

*Scroll to the right on mobile to see entire chart
Model
Description
Spec Sheet
Manual
Cylinder x Cylinder
PX-CCU
Fully Automatic Digital *
PX-NPCU
Fully Automatic Analog *
PX-TMCU
Fully Automatic Analog (not NFPA 99 compliant)
Liquid x Liquid
PX-LLU
Fully Automatic Digital *
PX-TMLU
Fully Automatic Analog
PX-PLU
Preferential Logic (aka Hybrid) *
PX-LU35
Fully Automatic Digital (liquid withdrawal from liquid valve)
Reserve Manifolds
PX-RWP
Cylinder Reserve
Manual
PX-TSD
Manual Simplex (for veterinary applications)
PX-TMD
Manual Duplex (for veterinary applications)
*These models are OSHPD Seismic Certified.


Powerex fully-automatic manifold systems incorporate innovative features that improve safety, reduce manifold system costs, enhance serviceability, and provide industry-leading reliability.
Key features include:


  • Use of transducers instead of pressure switches.
    • Improved safety – alarm generated immediately if failure.
    • Improved accuracy – ±1% accuracy vs. ±5% for pressure switches.
    • Lower cost than pressure switches.
  • Custom 400 psig differential rated solenoid valves.
  • Easy to service
    • Simple, 2D layout.
    • Union fittings before and after all serviceable components.
  • Field convertible (i.e. standard flow to high flow, cylinder x cylinder to liquid x liquid).
  • Reduce waste – exclusive Economizer Software for liquid cabinets ensures that all liquid is used when the vessel is deemed empty.





Headers Model: PX-CSC, PX-CSF, PX-CVC, PX-CVF, PX-LBL, PX-LBLL

*Scroll to the right on mobile to see entire chart
Model
Description
Spec Sheet
Cylinder x Cylinder
PX-CSC
Staggered Headers with Copper Pigtails for CCU, NPC & TMC Series Manifolds
PX-CSF
Staggered Headers with Stainless Steel Flexible Pigtails for CCU, NPC & TMC Series Manifolds
PX-CVC
Vertical Crossover Headers with Copper Pigtails for CCU, NPC & TMC Series Manifolds
PX-CVF
Vertical Crossover Headers with Stainless Steel Flexible Pigtails for CCU, NPC & TMC Series Manifolds
Liquid x Liquid
PX-LBL
Staggered Headers with Stainless Steel Flexible Pigtails for LLU Series Manifolds
PX-LBLL
Staggered Headers with Stainless Steel for PLU Series Manifolds
