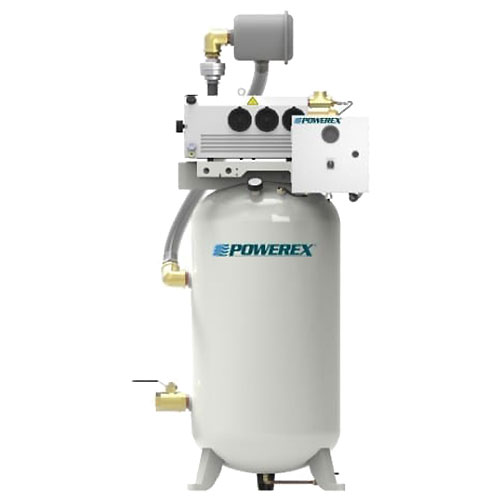

Powerex® Industrial Tankmount Systems


Our industrial vacuum tank mount systems feature a lubricated rotary vane pump, one of the simplest and most reliable pump types available. The use of oil in the pump produces higher efficiencies, lower operating temperatures, and lower sound levels. These pumps are also the most suitable to high ambient temperatures, which makes them ideal for manufacturing or process applications where environmental temperatures tend to be higher. (Consult factory for applications where ambient temperatures are above 104°F.) These pumps also have the lowest initial cost and high ultimate vacuum levels (29.3 Hg in end vacuum). By tank mounting the pumps on an ASME air receiver and adding a UL listed NEMA 1 control panel, Powerex has designed systems that are perfect for manufacturing processes like material handling, packing, food processing, and printing.

Benefits & Features
  • 29.3” Hg End Vacuum
  • Integrated Coalescing Filter
  • High Temp Alarm Standard
  • ASME Air Receivers
  • UL-listed NEMA 1 Control Panel

  • Low annual maintenance cost
  • Easy installation
  • Low operating temperatures
  • Manufactured in ISO 9001:2015 certified facilities

Model: IVS0151, IVS0152, IVS0202, IVS0303, IVS0403, IVS0503, IVS0754, IVS1004, IVS1005, IVD0153, IVD0203, IVD0303, IVD0304, IVD0404, IVD0504, IVD0505, IVD0755, IVD1005, IVD1006

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
System HP
Pump HP
SCFM @
100 PSIG
Tank(gal)
dB(A) Level
FLA @
208V
FLA @
230V
FLA @
460V
Spec
Sheet
Simplex
IVS0151
1.5
1.5
6
30
59
7.3
7
4.5
IVS0152
1.5
1.5
6
60
59
7.3
7
4.5
IVS0202
2
2
11
60
67
5.9
8.2
5.1
IVS0303
3
3
16
80
68
11.1
10.4
6.2
IVS0403
5
5
24
80
69
18.2
16.2
9.1
IVS0503
5
5
37
80
71
18.2
16.2
9.1
IVS0754
7.5
7.5
47
120
73
26
23.2
12.6
IVS1004
10
10
68
120
74
33.2
29.8
15.9
IVS1005
10
10
68
200
74
33.2
29.8
15.9
Duplex
IVD0153
3
1.5(2)
12
80
62
12.6
12
7
IVD0203
4
2(2)
22
80
70
9.8
14.4
8.2
IVD0303
6
3(2)
32
80
71
20.2
18.8
10.4
IVD0304
6
3(2)
32
120
71
20.2
18.8
10.4
IVD0404
10
5(2)
48
120
72
34.4
30.4
16.2
IVD0504
10
5(2)
74
120
74
34.4
30.4
16.2
IVD0505
10
5(2)
74
200
74
34.4
30.4
16.2
IVD0755
15
7.5(2)
94
200
76
50
44.4
23.2
IVD1005
20
10(2)
136
200
77
64.4
57.6
29.8
IVD1006
20
10(2)
136
240
77
64.4
57.6
29.8




SYSTEM FEATURES
STANDARD FEATURES
  • UL508A Control Panel
  • High Temp Alarm
  • Drip Leg
  • ASME Receiver
  • NEMA 1 Control Panel
OPTIONAL FEATURES
  • NEMA 4 Control Panel
  • Autopurge with NEMA 4 Panel
  • Lined Tanks
  • Exhaust Flex Houses (Accessory)
OPTIONS FOR ALL MODELS
  • Premium warranty
  • Vacuum regulator
  • Carbon filters
  • Lined tanks
  • NEMA 4 Panels
  • Auto purge
  • Vacuum connection flex hoses
